DATACOM

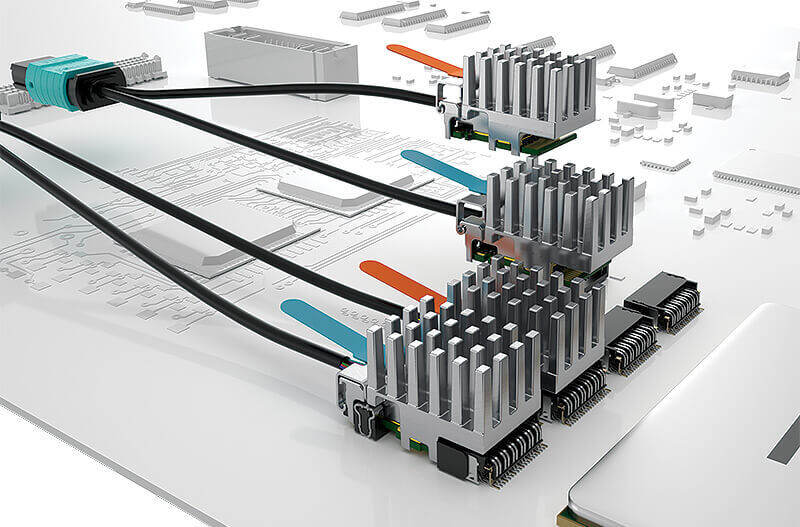

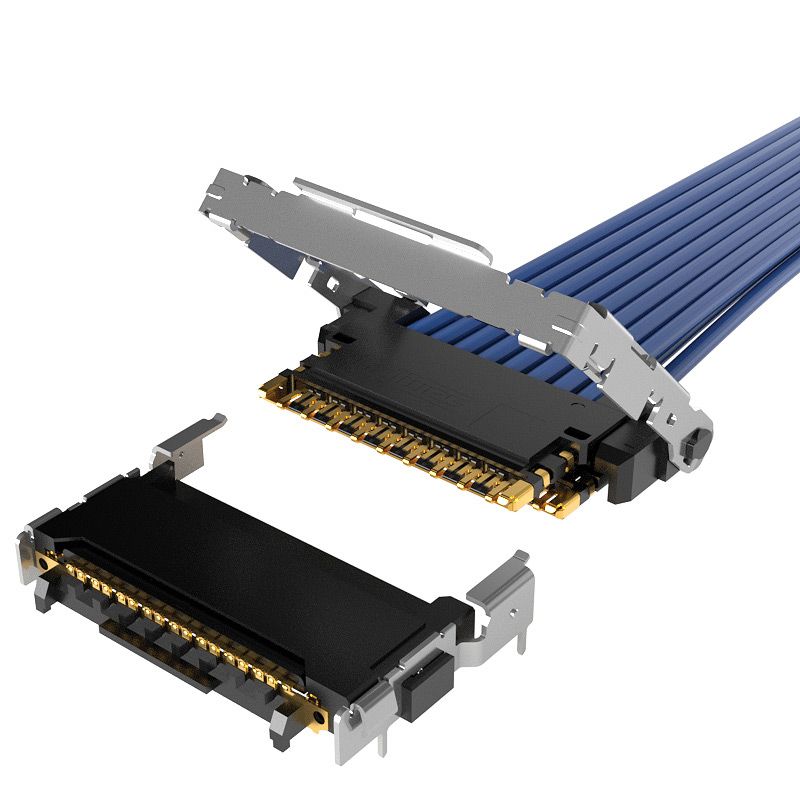

SI-FLY® LP 112 GBPS PAM4, LOW PROFILE HIGH-DENSITY CABLE ASSEMBLY

Si-Fly® LP is Samtec's lowest profile Flyover® cable solution capable of residing adjacent to the IC package, under heat sinks or other cooling hardware with performance to 112 Gbps PAM4.

Features

• 25.6 TB aggregate, path to 51.2 TB
• PCIe® 6.0/CXL® 3.1 capable
• Ultra-high density
• Uses direct connect technology to elude the BGA and route signals directly from the silicon package through a long-reach cable
• 5x the reach of traditional PCB solutions

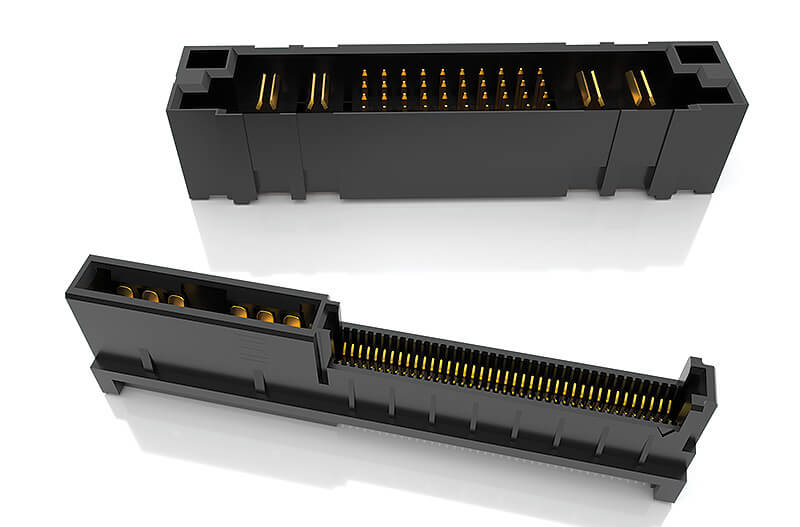

XCEDE® HD HIGH-DENSITY BACKPLANE SYSTEM

Samtec's XCede® HD high-density backplane system features a small form factor ideal for density-critical applications, and a modular design for flexibility and customizable solutions.

Features

• Small form factor provides significant space savings
• Modular design provides flexibility in applications
• High-density backplane system – up to 84 differential pairs per linear inch
• 1.80 mm column pitch
• 3-, 4- and 6-pair designs
• 4, 6 or 8 columns
• 12–48 pairs
• Up to a 3.00 mm contact wipe on signal pins
• Multiple signal/ground pin staging options
• Integrated power, guidance, keying and side walls available
• 85 Ω and 100 Ω options
• Three levels of sequencing enable hot plugging
• Cost-effective designs available for low-speed applications

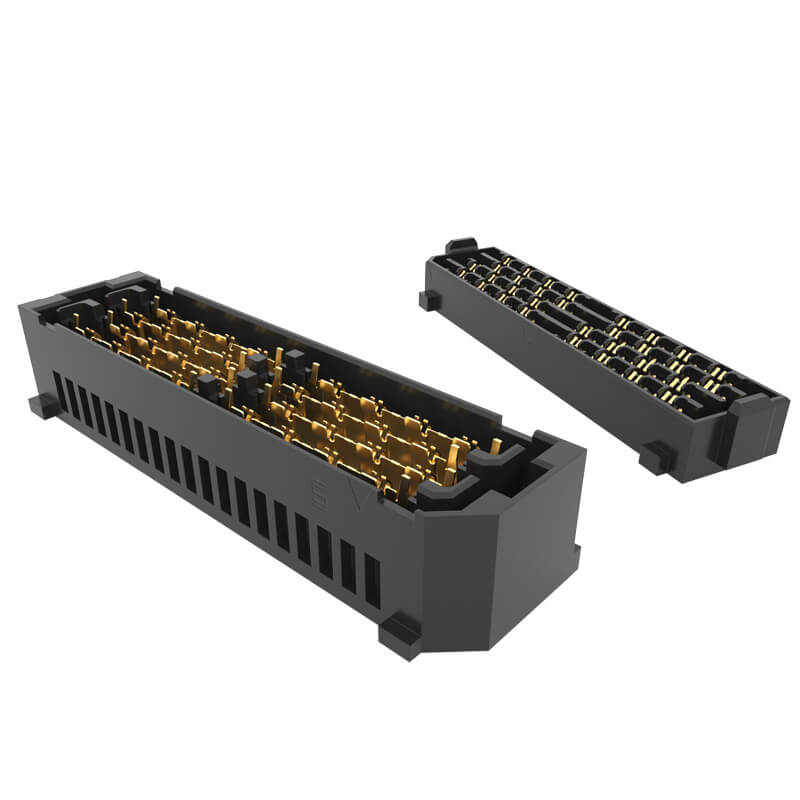

NOVARAY® 112 GBPS PAM4, EXTREME DENSITY ARRAYS

NovaRay® combines extreme density and performance for 112 Gbps PAM4 per channel in 40% less space than traditional arrays.

Features

• 112 Gbps PAM4 per channel
• 4.0 Tbps aggregate data rate - 9 IEEE 400G channels
• PCIe® 6.0/CXL® 3.1 capable
• Innovative, fully shielded differential pair design enables extremely low crosstalk (beyond 40 GHz) and tight impedance control
• Two points of contact ensure a more reliable connection
• 92 Ω solution addresses both 85 Ω and 100 Ω applications
• Analog Over Array™ capable

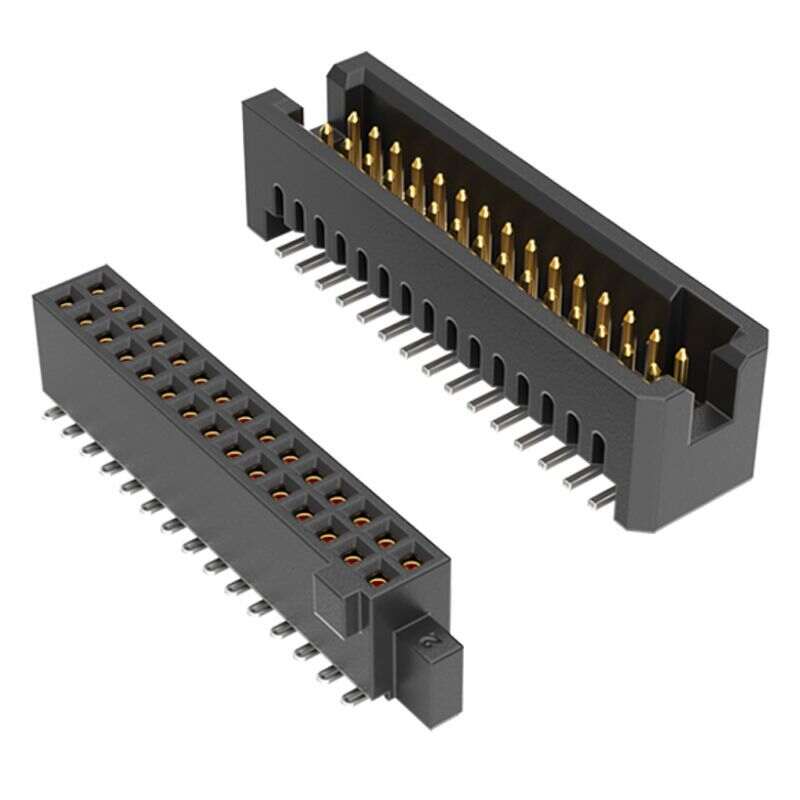

RUGGED TIGER EYE™ SYSTEMS

Tiger Eye™ high-cycle, high-reliability connector systems feature Samtec's most rugged contact system rated to 1,000+ mating cycles in 0.80 mm, 1.27 mm and 2.00 mm pitches, with a variety of ruggedizing options.

Features

• High-reliability Tiger Eye™ three-finger BeCu contact system
• Choice of 0.80 mm, 1.27 mm and 2.00 mm pitch
• Optional locking and latching systems for higher withdrawal force
• Standard and cost-saving designs
• Extended Life Product™ testing available
• Severe Environment Testing (SET) available (Visit samtec.com/set)
• Discrete wire cable assemblies, components and tooling available

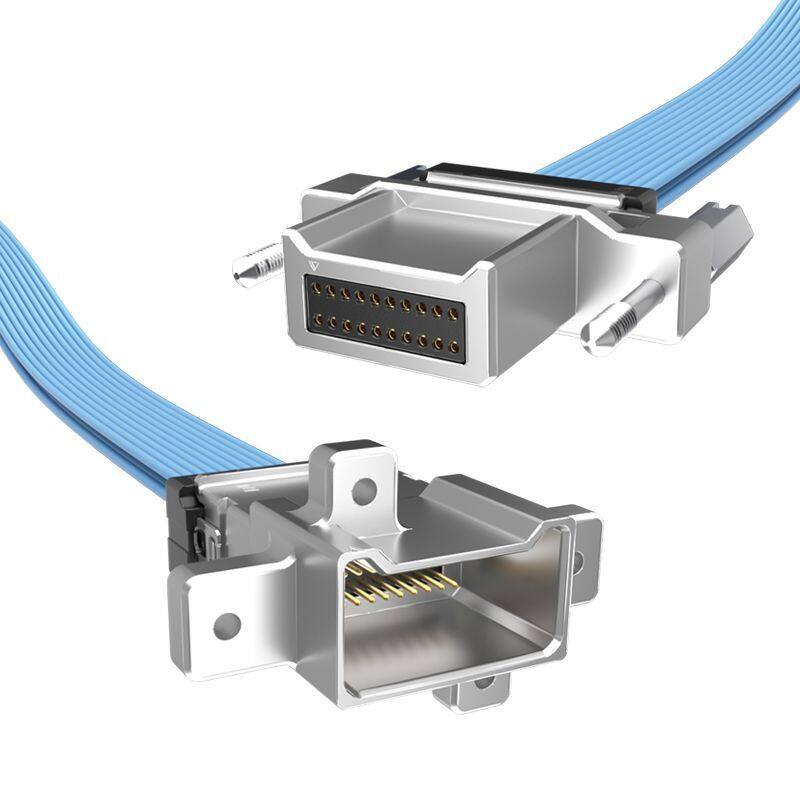

URSA® I/O ULTRA RUGGED CABLE SYSTEM

URSA® I/O features a hyperboloid-type contact for extreme reliability and high mating cycles in ultra rugged applications with EMI protection.

Features

• Four points of contact for an extremely reliable connection
• Hyperboloid-type contact for extreme high mating cycles
• Current rating: 3.8 A max
• Voltage rating: 200 VAC/282 VDC max
• Micro 1.00 mm pitch in double row space saving design
• Extreme density with up to 1,450 total I/Os in a 1RU panel (29 cables at 50 total I/Os each)
• Cable-to-cable and cable-to-board solutions
• EMI shielding to limit signal degradation and optimize performance

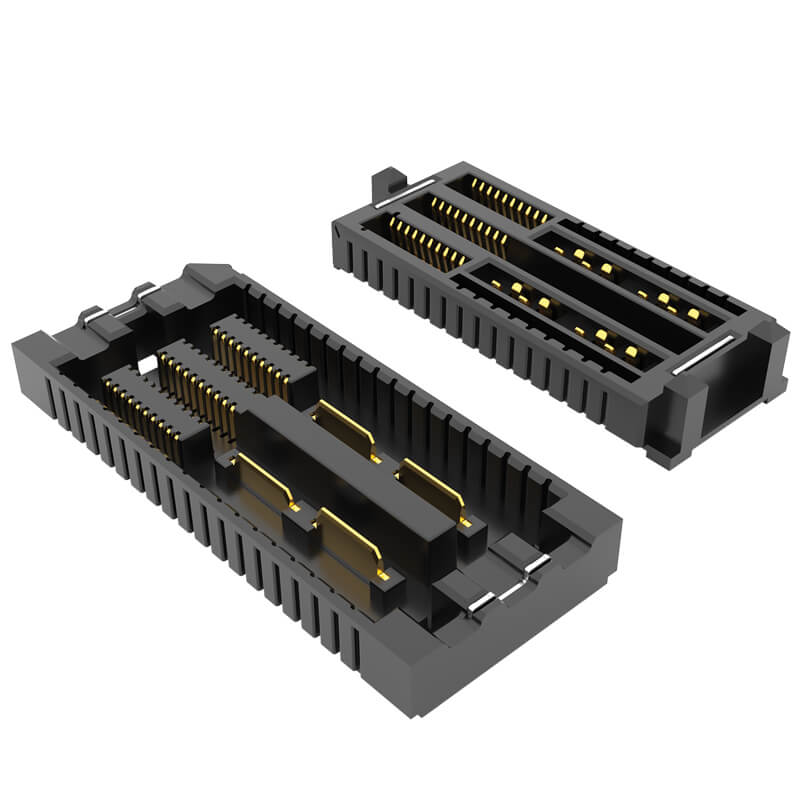

ACCELERATE® MP 0.635 MM SIGNAL/POWER ARRAYS

These 0.635 mm pitch high-density, high-speed signal/power arrays achieve 64 Gbps PAM4 speeds and feature rotated power blades for improved performance and simplified breakout region (BOR).

View the full line of AcceleRate® products.

Features

• Best in class density for power and signal
• Power blades rotated 90º gives equal access to heat escape for uniform cooling, increased current capacity and reduced crowding
• Supports 64 Gbps PAM4 (32 Gbps NRZ) applications
• PCIe® 6.0/CXL® 3.1 capable
• Open-pin-field design for grounding and routing flexibility
• High-density multi-row design
• Low profile 5 mm and 10 mm stack heights; up to 16 mm on roadmap
• 4 or 8 total power blades; up to 10 in development
• 60 or 240 total signal positions; additional position counts in development
• 0.635 mm signal pitch
• Optional alignment pins
• Standard weld tabs for a secure connection to the board
• Polarized guide posts for blind mating

MILITARY & AEROSPACE

RUGGED TIGER EYE™ SYSTEM

Tiger Eye™ high-cycle, high-reliability connector systems feature Samtec's most rugged contact system rated to 1,000+ mating cycles in 0.80 mm, 1.27 mm and 2.00 mm pitches, with a variety of ruggedizing options.

Features

• High-reliability Tiger Eye™ three-finger BeCu contact system
• Choice of 0.80 mm, 1.27 mm and 2.00 mm pitch
• Optional locking and latching systems for higher withdrawal force
• Standard and cost-saving designs
• Extended Life Product™ testing available
• Severe Environment Testing (SET) available (Visit samtec.com/set)
• Discrete wire cable assemblies, components and tooling available

SEARAY™ HIGH-DENSITY OPEN-PIN-FIELD ARRAYS

These high-speed, high-density open-pin-field arrays allow maximum grounding and routing flexibility.

Features

• Maximum routing and grounding flexibility
• Lower insertion/extraction forces vs. typical array products
• 56 Gbps PAM4 performance
• Up to 560 I/Os in open pin field design
• 1.27 mm (.050") pitch
• Rugged Edge Rate® contact system
• Can be “zippered” during mating/unmating
• Solder charge terminations for ease of processing
• Meets Extended Life Product™ (E.L.P.™) standards
• Analog Over Array™ capable
• 7–18.5 mm stack heights
• Vertical, right-angle, press-fit
• Elevated systems to 40 mm
• 85 Ω systems
• Standards: VITA™ 47, VITA™ 57.1 FMC™, VITA™ 57.4 FMC+™, VITA™ 74 VNX™, PISMO™ 2
• IPC J-STD-001F, requirements for soldered electrical and electronic assemblies – meets class 3 acceptability criteria for high-performance/harsh environment electronic products (SEAM/SEAF series only)
• IPC-A-610F, acceptability of electronic assemblies – meets class 3 acceptability criteria for high-performance/harsh environment electronic products (SEAM/SEAF series only)

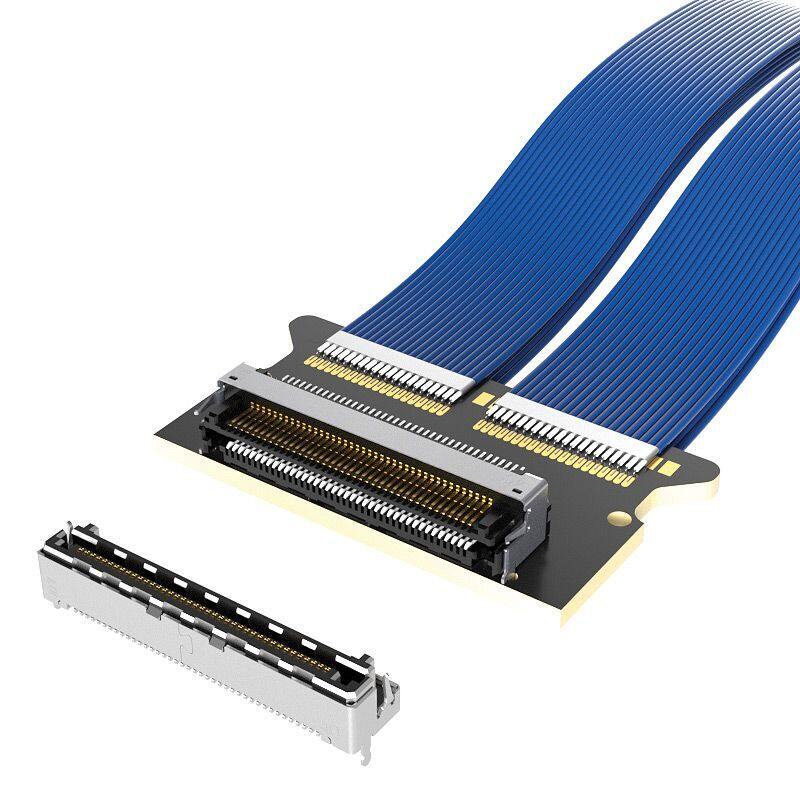

RAZOR BEAM™ SELF MATING HIGH SPEED RUGGED CABLES

Razor Beam™ self mating high speed rugged cables come in vertical or right angle options and offer rugged screw down options for added reliability.

Features

• 50 ohm single-ended signal routing
• 38 AWG micro ribbon coax cable
• Rugged screw down option
• Vertical or right-angle end options
• 0.50 mm (.0197") pitch

APPLICATIONS/MEDICAL

SURGICAL

Surgical theater equipment, from lighting and tables to monitors and robotics, requires durable, high-reliability interconnects. Samtec provides rugged, high-performance solutions to enhance safety and efficiency in the operating room for patients and healthcare workers.

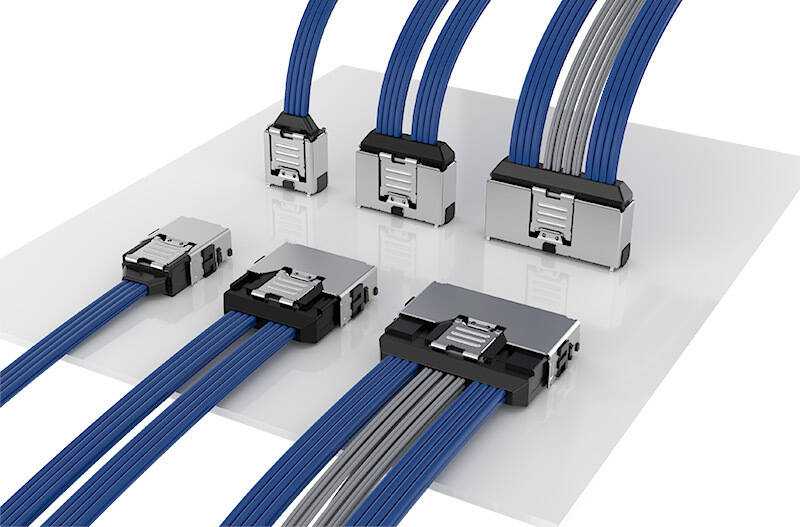

IMAGING

Medical imaging needs high data rate solutions to rapidly transmit large image data from detectors to processors. Samtec provides high-speed, non-magnetic interconnects for clear imaging, aiding in the diagnosis, monitoring, and treatment of medical conditions.

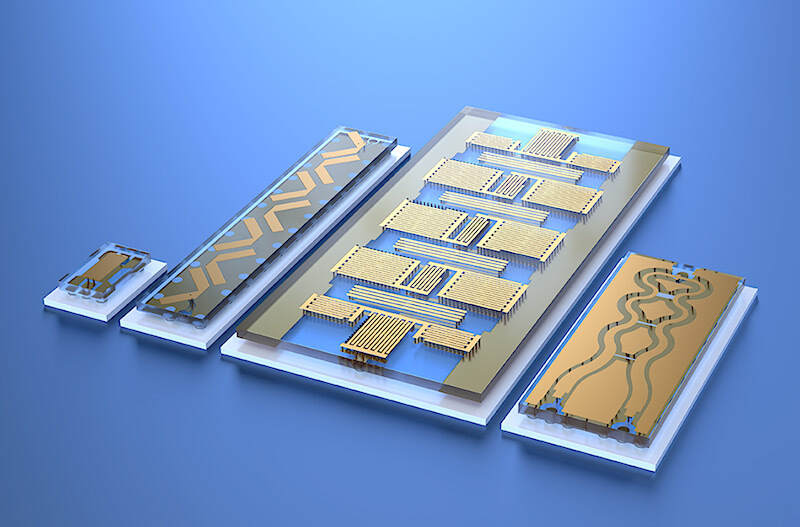

POINT OF CARE & MONITORING

POC equipment simplifies the delivery of medical products and services directly to patients. Samtec provides high-speed, ultra-micro, and RF solutions for POC devices, ensuring reliable, real-time data transmission with portability and accuracy.

THERAPEUTICS

Modern therapeutics and rehabilitation technologies, including robotics and implantables, require reliable solutions for effective treatment. Samtec provides rugged, ultra-micro interconnects to ensure consistent, high-reliability performance in patient therapy.

MEDICAL EQUIPMENT

Medical equipment, from monitors to robots, requires high-performance, reliable, rugged, and compact solutions. As equipment becomes more advanced, Samtec's high-speed, high-power, and RF interconnects ensure consistent, critical performance.
