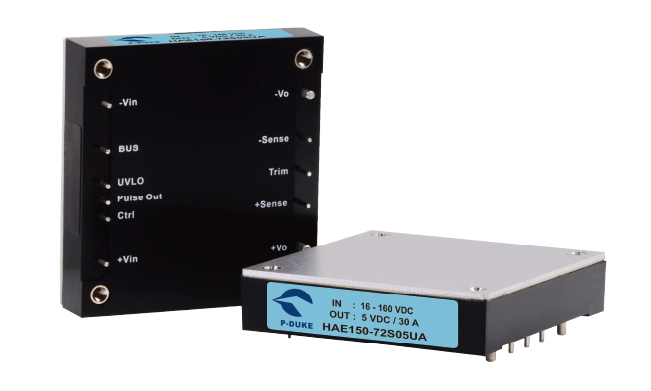

HAE150U

• High Efficiency: Boasts a high efficiency rating, typically exceeding 90%, which minimizes power loss and heat generation, making it ideal for railway applications where energy efficiency is crucial.
• Wide Input Voltage Range: Accepts a wide range of input voltages, usually 14.4-154 VDC, ensuring compatibility with various railway power systems and battery configurations.
• Various Output Voltages: Offers multiple output voltage options, including 12V, 24V, and 48V, providing flexibility for different railway applications and loads.
• EN50155 Compliance: Designed and certified to meet the EN50155 standard for railway applications, ensuring reliability and safety in harsh railway environments.
• Wide Operating Temperature Range: Can operate reliably in a wide temperature range, typically -40°C to +85°C, making it suitable for various railway conditions and climates.
• Protections: Includes built-in protections against overvoltage, undervoltage, overload, short circuit, and overtemperature, ensuring the safety of the converter and connected equipment.
• Compact and Rugged Design: Features a compact and rugged design, with enhanced shock and vibration resistance, making it suitable for the challenging conditions of railway installations.
• Remote On/Off Control: Allows for remote control of the converter's operation, providing flexibility in system integration and management.
• LED Indicators: Equipped with LED indicators for power status and fault conditions, simplifying troubleshooting and maintenance.
• High Reliability: Designed for a long lifespan and high reliability, minimizing the need for replacements and maintenance in railway applications.

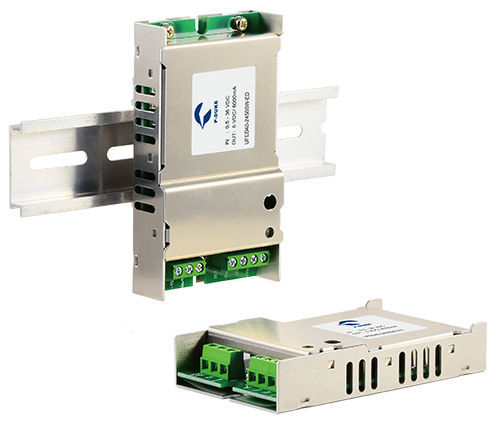

UFED40W

• Ultra-Wide Input Voltage Range: Accepts an exceptionally wide input voltage range, typically 9-160 VDC, making it compatible with a vast array of railway and transportation power systems.
• High Efficiency: Offers high efficiency, often exceeding 90%, reducing energy waste and minimizing heat generation, essential for railway applications.
• EN50155 Compliance: Designed and certified to meet the EN50155 standard for railway applications, ensuring reliability and safety in demanding railway environments.
• Multiple Output Options: Provides multiple standard output voltage options, including 12V, 24V, and 48V, with the possibility of custom outputs, catering to diverse railway applications.
• Compact and Lightweight: Features a compact and lightweight design, saving valuable space and reducing weight in railway installations.
• Protections: Includes comprehensive protection features against overvoltage, undervoltage, overload, short circuit, and overtemperature, safeguarding the converter and connected equipment.
• Wide Operating Temperature Range: Can operate reliably in a wide temperature range, typically -40°C to +70°C, suitable for various railway conditions and climates.
• High Reliability: Engineered for a long lifespan and exceptional reliability, minimizing maintenance and replacement needs in railway applications.
• Remote On/Off Control: Offers remote control of the converter's operation, providing flexibility for system integration and control.
• Isolation: Provides input-to-output isolation, enhancing safety and protecting sensitive railway equipment.

RDL03W

• Wide Input Voltage Range: The RDL03W can accept a wide range of input voltages, typically from 14.4V to 154V DC. This wide input range ensures compatibility with various railway power systems.
• EN50155 Compliance: The converter is designed and certified to comply with EN50155, the internationally recognized standard for electronic equipment used on railway rolling stock.
• This ensures its reliability and safety in demanding railway environments.
• High Efficiency: The RDL03W is designed to be highly efficient, typically exceeding 90%. This helps to reduce energy consumption and heat generation, which are crucial considerations in railway applications.
• Compact Design: The converter comes in a compact and lightweight package, which helps to save space and reduce weight in railway installations.
• Protections: The RDL03W is equipped with various protection features to safeguard against overvoltage, overcurrent, short-circuit, and overtemperature conditions. These protections ensure the safety and reliability of the converter and the connected equipment.
• Wide Operating Temperature Range: The converter can operate reliably over a wide temperature range, typically from -40°C to +85°C. This allows it to function in various railway environments, including extreme weather conditions.
• Isolation: The RDL03W provides isolation between the input and output circuits, ensuring safety and protecting sensitive railway equipment.

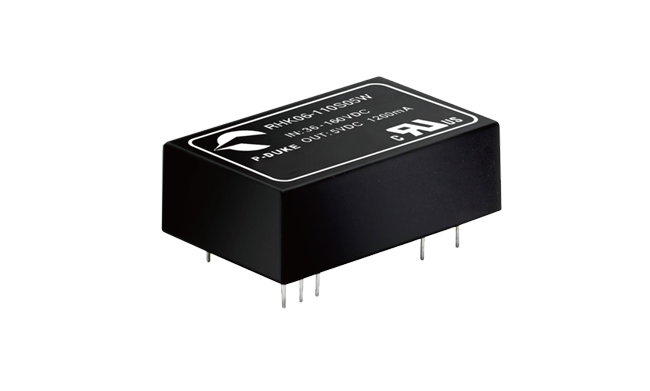

RHK06W

• Wide Input Voltage Range: 9-36V or 18-75V DC input options, accommodating various railway power systems.
• High Efficiency: Typically exceeds 90% efficiency, reducing energy waste and heat generation, crucial for railway applications.
• EN50155 Compliance: Designed and certified to meet EN50155 standards for railway applications, ensuring reliability and safety in demanding environments.
• Multiple Output Options: Offers various output voltages (e.g., 5V, 12V, 24V) to meet diverse railway power needs.
• Compact Design: Features a compact and lightweight design, saving space and reducing weight in railway installations.
• Protections: Includes comprehensive protection against overvoltage, undervoltage, overload, short circuit, and overtemperature, safeguarding the converter and connected equipment.
• Isolation: Provides input-to-output isolation, enhancing safety and protecting sensitive railway equipment.
• Remote On/Off Control: Allows for remote control of the converter, providing flexibility in system integration and control.
• Wide Operating Temperature Range: Operates reliably in a wide temperature range (-40°C to +85°C), suitable for various railway conditions and climates.
• High Reliability: Engineered for a long lifespan and exceptional reliability, minimizing maintenance and replacement needs in railway applications.

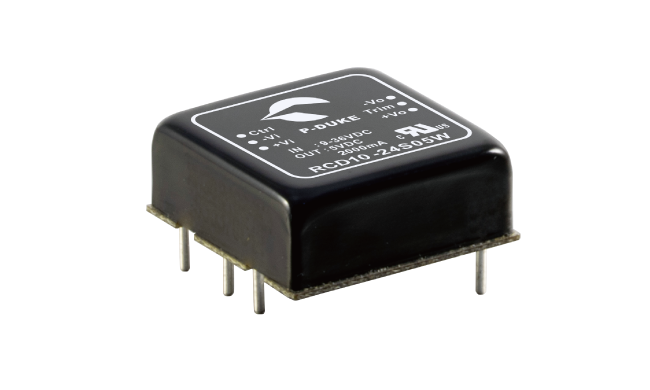

RCD10W

• Wide Input Voltage Range: Accepts a broad range of input voltages, typically 9-36V, 18-75V, or 36-160V DC, ensuring compatibility with diverse railway power systems.
• Regulated Output: Provides a stable and regulated output voltage, ensuring consistent power delivery to sensitive railway equipment.
• High Isolation Voltage: Offers high isolation voltage, typically 3000VDC, enhancing safety and protecting sensitive railway electronics from electrical disturbances.
• Built-in EMI Filter: Includes a built-in EMI filter to suppress electromagnetic interference, ensuring compliance with railway EMC standards and preventing disruptions to other systems.
• Wide Operating Temperature Range: Can operate reliably in a wide temperature range, typically -40°C to +85°C, suitable for various railway environments and climates.
• Compact DIP Package: Features a compact Dual In-line Package (DIP) design, saving space on printed circuit boards (PCBs) in railway applications.
• Multiple Output Options: Offers various standard output voltage options, such as 5V, 12V, or 24V, catering to different railway power needs.
• High Reliability: Designed for long-term reliability, minimizing the need for replacements and maintenance in railway applications.
