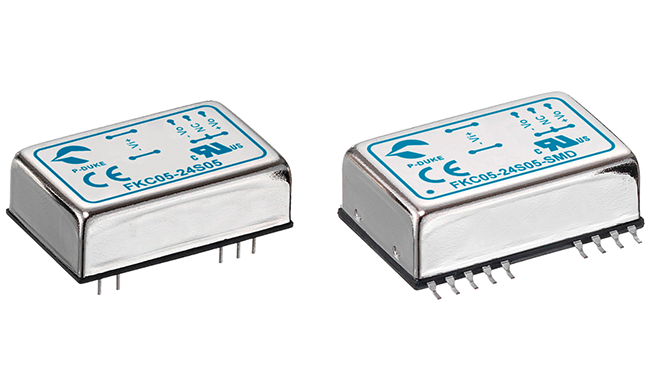

FKC05 / FKC05W

• No Minimum Load Required
• 1600Vdc Input To Output Isolation
• Standard 1.25 X 0.80 X 0.40 Inch 24 Pin DIP And SMD Package
• IEC/UL/EN 62368-1 Safety Approval

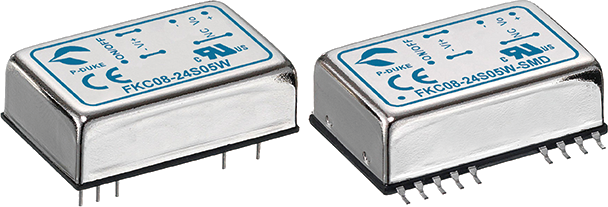

FKC08W

• Wide Input Voltage Range: Can operate with input voltages ranging from 9V to 36V or 18V to 75V depending on the model.
• High Efficiency: Offers up to 90% efficiency, which helps to reduce energy consumption and heat generation.
• Compact Size: Comes in a small package, making it easy to integrate into space-constrained designs.
• Isolation: Provides 1500VDC isolation between input and output for safety and noise reduction.
• Protection Features: Includes over-current, over-voltage, and short-circuit protection to ensure safe operation.

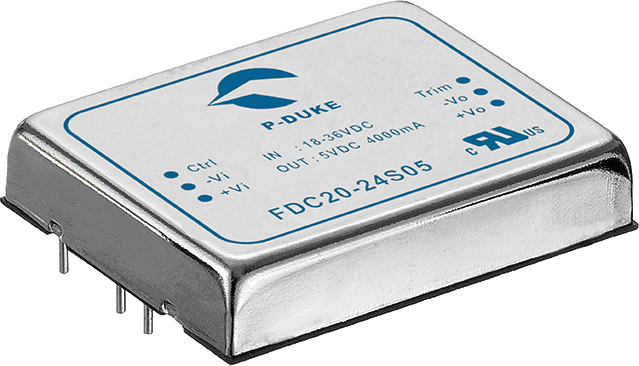

FDC20 / FDC20W

• Wide Input Voltage Range: FDC20: 9-36V or 18-75V
• FDC20W: 18-75V
• High Efficiency: Up to 90% efficiency, reducing energy consumption and heat.
• Isolation: 1500VDC isolation for safety and noise reduction.
• Various Output Voltages: Single and dual output models with different voltage options.
• Compact Size: Easy to integrate into tight spaces.
• Protections: Over-current, over-voltage, and short-circuit protection.
• Wide Operating Temperature: -40°C to +85°C for harsh environments.

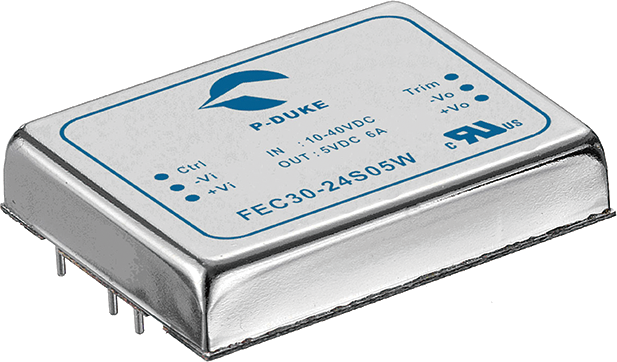

FEC30W

• Wide Input Voltage Range: 18-75V DC
• High Efficiency: Up to 97% efficiency, minimizing energy loss and heat generation.
• High Power Density: Delivers 30W of power in a compact package.
• Isolation: 1500VDC isolation for safety and noise reduction.
• Output Voltage Options: Single output models with various voltage options (3.3V, 5V, 12V, 15V, 24V, ±12V, ±15V).
• Protections: Over-current, over-voltage, over-temperature, and short-circuit protection for safe operation.
• Wide Operating Temperature: -40°C to +85°C ambient temperature range.

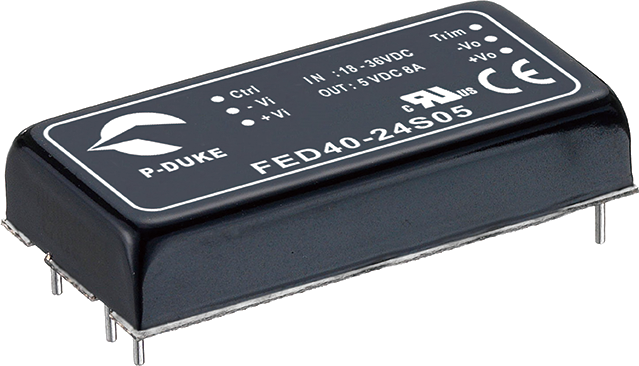

FED40

• Wide Input Voltage Range: FED40: 18-36V or 9-75V
• FED40W: 18-75V
• High Efficiency: Up to 90%, reducing energy consumption and heat generation.
• Isolation: 1500VDC or 3000VDC isolation (depending on the model) for safety and noise reduction.
• MIL-STD-810F (Environmental Engineering Considerations and Laboratory Tests)
• MIL-STD-461F (Electromagnetic Emission and Susceptibility Requirements for the Control of Electromagnetic Interference)
• DO-160G (Environmental Conditions and Test Procedures for Airborne Equipment)
• Output Power: 40W
• Compact and Lightweight: Suitable for space-constrained applications.
• Protections: Over-current, over-voltage, over-temperature, and short-circuit protection.
• Wide Operating Temperature: -55°C to +100°C for harsh environments.
• Various Output Voltages: Single and dual output models with different voltage options.
