Newhaven

Experience Top-Tier Display Solutions with Newhaven


Enhance your product offerings with reliable, high-quality display solutions. At Abacus Technologies, we are proud to be an authorized distributor of Newhaven Display products, renowned for their exceptional performance and reliability.


Product Highlight

LCD DISPLAYS

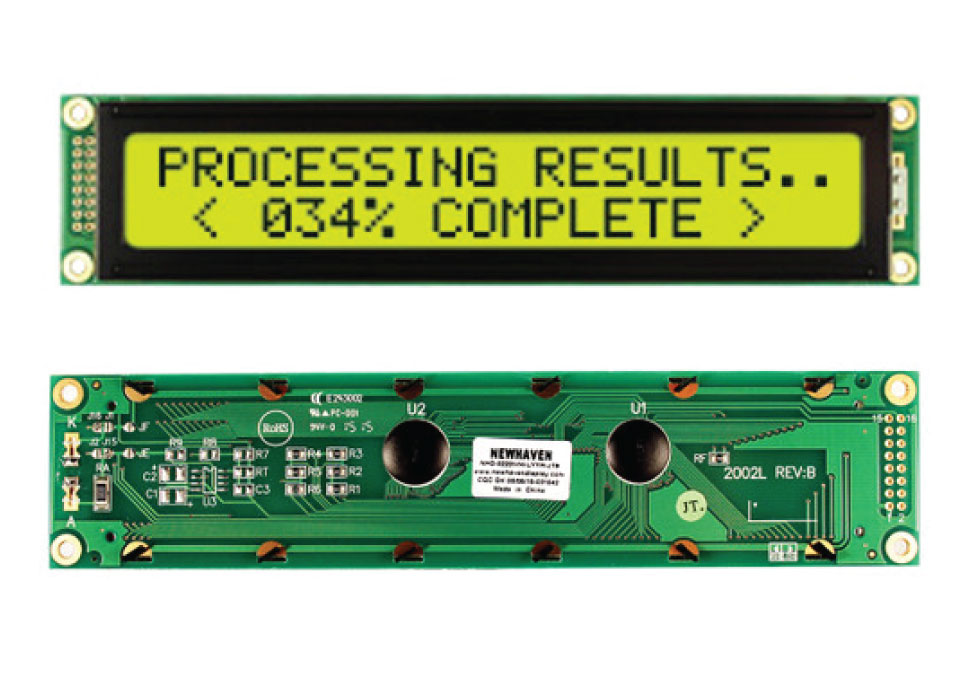

NHD-0220WH-LYYH-JT#

The Newhaven Display NHD-0220WH-LYYH-JT# is a character LCD (Liquid Crystal Display) module designed to display text and characters. It features a 2-line by 20-character format, offering a compact yet readable display solution. The display utilizes STN (Super-Twisted Nematic) technology with a yellow/green color scheme and a transflective viewing mode, making it visible in both bright and low-light environments. The built-in controller simplifies integration with microcontrollers or other systems.

    Features:

  • Display Format: 2 lines x 20 characters
  • Display Technology: STN (Super-Twisted Nematic)
  • Display Color: Yellow/Green
  • Viewing Mode: Transflective (visible in various lighting conditions)
  • Built-in Controller: ST7066U
  • Power Supply: +5.0V
  • Backlight: Yellow/Green LED
  • Character Set: Supports English and Japanese characters
  • Interface: 8-bit parallel
  • RoHS Compliant: Meets environmental standards for restricted substances

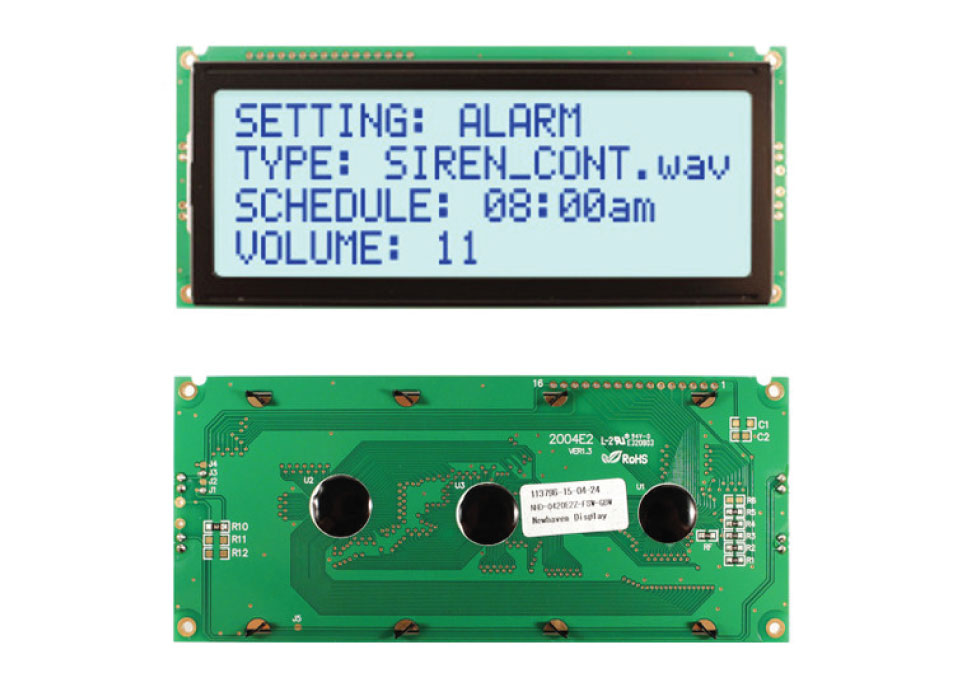

NHD-0420E2Z-FSW-GBW

The Newhaven Display NHD-0420E2Z-FSW-GBW is a character LCD (Liquid Crystal Display) module, designed primarily for displaying text and symbols. It features a 4-line by 20-character layout, making it ideal for applications where concise information display is needed. The display technology is STN (Super-Twisted Nematic) with a gray background and transflective viewing mode, enabling readability in both bright and dimly lit environments. It also includes a white LED backlight for enhanced visibility in low-light situations.

    Features:

  • Display Format: 4 lines x 20 characters
  • Display Technology: STN (Super-Twisted Nematic)
  • Display Mode: Transflective (visible with or without backlight)
  • Background Color: Gray
  • Character Color: Black
  • Backlight: White LED (edge-lit)
  • Built-in Controller: ST7066U (compatible with 4-bit or 8-bit microcontrollers)
  • Interface: 8-bit parallel
  • Power Supply: +5.0V
  • Viewing Angle: 6:00 (optimal viewing position)
  • Operating Temperature: -20°C to +70°C (wide temperature range)
  • RoHS Compliant: Meets environmental standards for restricted substances.

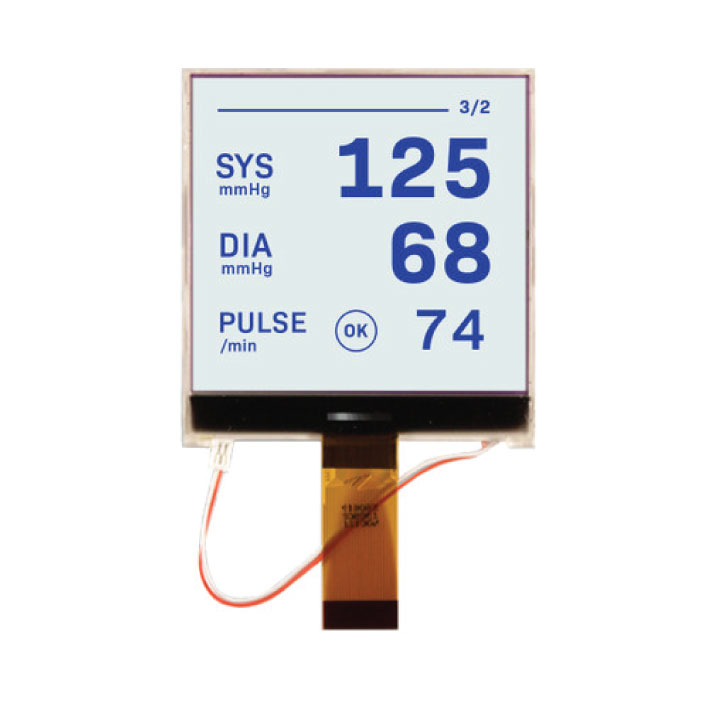

NHD-C128128BZ-FSW-GBW

The Newhaven Display NHD-C128128BZ-FSW-GBW is a monochrome graphic Chip-On-Glass (COG) Liquid Crystal Display (LCD) module with a resolution of 128x128 pixels. It features a transflective STN (+) positive gray display, meaning it can be viewed in various lighting conditions, including direct sunlight, by utilizing both ambient light and a built-in white side backlight.

    Features:

  • Display Format: 4 lines x 20 characters
  • Display Technology: STN (Super-Twisted Nematic)
  • Display Mode: Transflective (visible with or without backlight)
  • Background Color: Gray
  • Character Color: Black
  • Backlight: White LED (edge-lit)
  • Built-in Controller: ST7066U (compatible with 4-bit or 8-bit microcontrollers)
  • Interface: 8-bit parallel
  • Power Supply: +5.0V
  • Viewing Angle: 6:00 (optimal viewing position)
  • Operating Temperature: -20°C to +70°C (wide temperature range)
  • RoHS Compliant: Meets environmental standards for restricted substances.

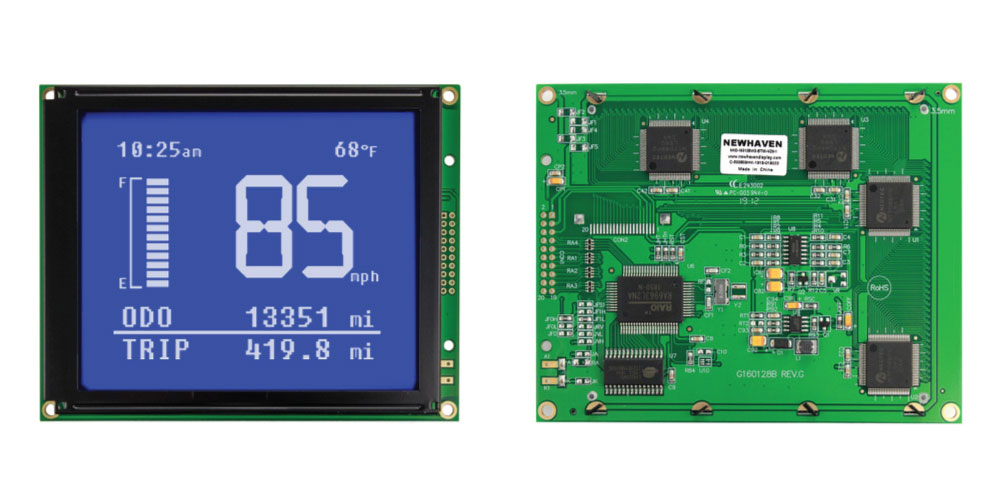

NHD-160128WG-BTMI-VZ#-1

The Newhaven Display NHD-160128WG-BTMI-VZ#-1 is a monochrome graphic LCD (Liquid Crystal Display) module featuring a 160x128 pixel resolution. It uses STN (Super-Twisted Nematic) technology with a negative blue display and a built-in white backlight for optimal visibility in various lighting conditions. This module is designed for applications requiring clear and concise graphic information display.

    Features:

  • Display Type: Monochrome Graphic LCD
  • Resolution: 160 x 128 pixels
  • Display Mode: Transmissive STN (-) Negative Blue
  • Backlight: White LED
  • Interface: 8-bit parallel
  • Power Supply: 5.0V
  • Built-in Controller: NT7086 (compatible with Arduino)
  • Viewing Angle: 6:00
  • Operating Temperature: -20°C to +70°C
  • Selectable Font Size: Offers flexibility for text display
  • Built-in Negative Voltage: Simplifies power supply design
  • RoHS Compliant: Meets environmental standards for restricted substances

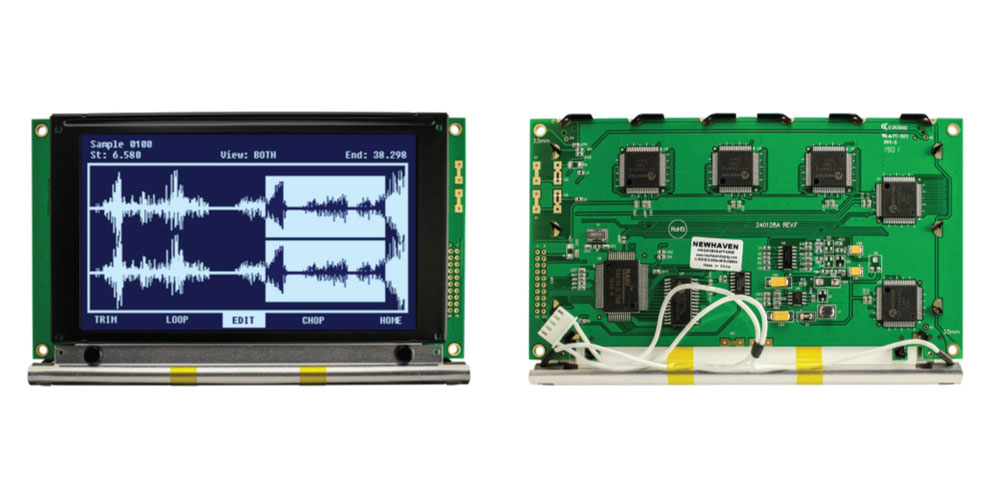

NHD-240128WG-AFTI-VZ#C5

The Newhaven Display NHD-240128WG-AFTI-VZ#C5 is a monochrome graphic LCD (Liquid Crystal Display) module with a resolution of 240x128 pixels. It employs FSTN (-) (Film Super-Twisted Nematic, negative type) technology, resulting in a black display on a gray background. The display is transmissive and utilizes a CCFL (Cold Cathode Fluorescent Lamp) backlight for enhanced visibility. This module is designed for applications that require clear and concise graphic information display. /p>

    Features:

  • Display Type: Monochrome Graphic LCD
  • Resolution: 240 x 128 pixels
  • Display Mode: Transmissive FSTN (-)
  • Display Colors: Black on gray background
  • Backlight: White CCFL
  • Interface: 8-bit parallel
  • Power Supply: 5.0V
  • Controller: NT7086 (compatible with Arduino)
  • Viewing Angle: 6:00
  • Operating Temperature: -20°C to +70°C
  • Selectable Font Size: Offers flexibility for text display
  • Built-in Negative Voltage: Simplifies power supply design
  • RoHS Compliant: Meets environmental standards for restricted substances

Can't find what you're looking for? Get in touch with us and we will help. Request a quote below

REQUEST A QUOTE
