Are you seeking high-performance optoelectronic solutions for your manufacturing needs? At Abacus Technologies, we are proud to be an authorized distributor of ISOCOM products, known for their exceptional quality and reliability.
Product Highlight

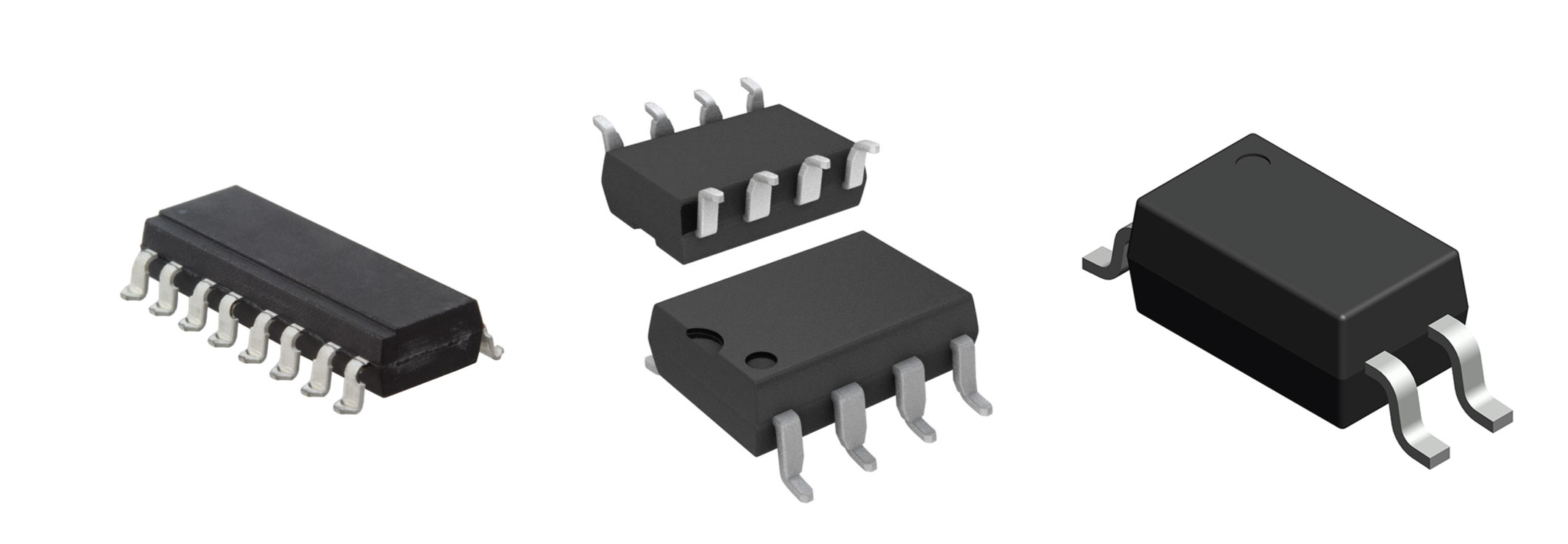

Optocouplers
Optocouplers
We offer ISOCOM's complete and comprehensive line of Optocouplers suitable for all commercial applications.
- CTR Range:
- 10% to 600% for Transistor Detectors
- 1000% min for Darlington Detectors
- Isolation Voltage: 7500v
- Collector to Emitter Voltage Range 30v to 400v
- Peak Triac Blocking Voltage up to 800v
Features
- Transistors (Singles, Duals, & Quads)
- AC Inputs (Singles, Duals, & Quads + Single 6 Pin Devices)
- Schmitt Triggers (Single Channel, Microprocessor Compatible)
- Darlingtons (Singles, Duals, & Quads)
- Triacs (Standard & Zero Crossing Devices)
- Low Power Couplers (Single, Dual, & Quad – Transistor & Darlington Devices)
Products include:
4 Pin DIL and SMD Optocouplers | 6 Pin DIL and SMD Optocouplers | 8 Pin DIL and SMD Optocouplers | 16 Pin DIL and SMD Optocouplers | Mini Flat Package | Half Pitch Products | High Speed Products | 8 Pin Symmetrical Terminal Configuration DIL and SMD | 16 Pin Symmetrical Terminal Configuration DIL and SMD | Special Purpose 6 Pin DIL and SMD | IGBT Optocouplers

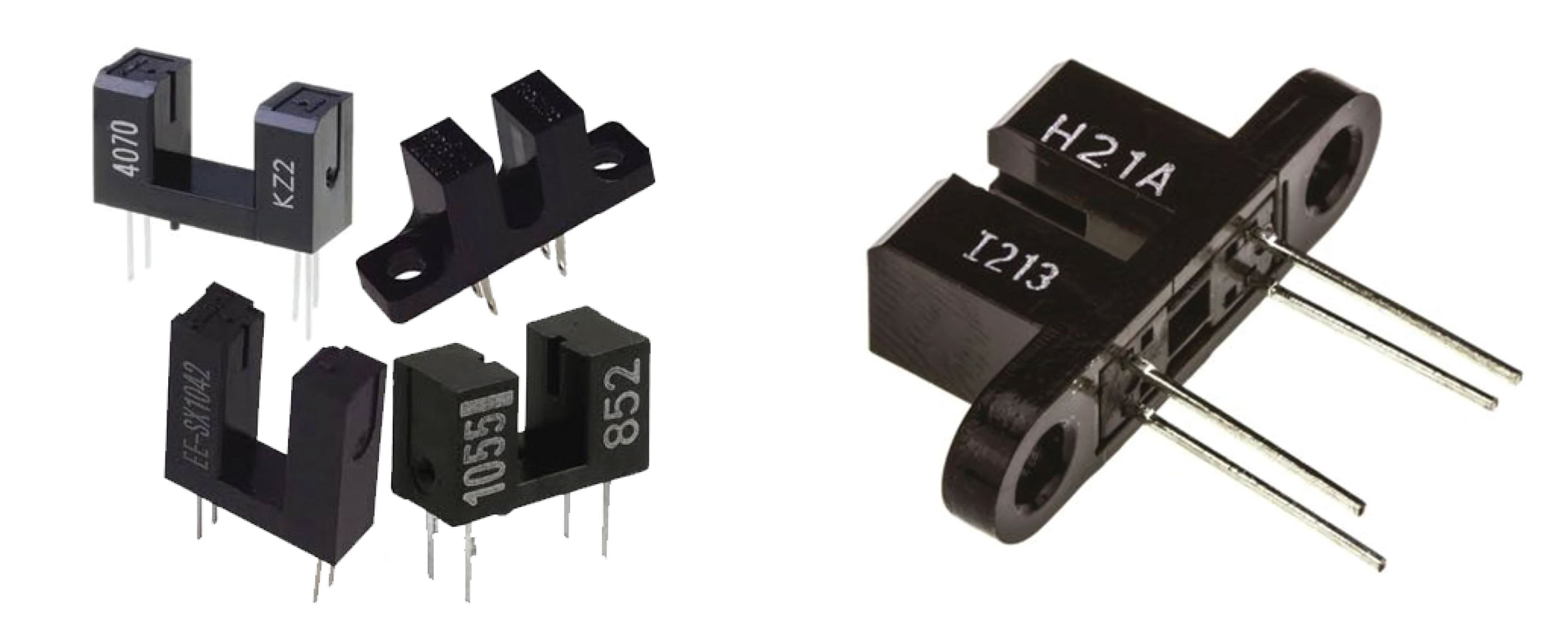

Optoswitches
We offer ISOCOM's three categories of Opto-Switches designed for all commercial applications:
- Single Channel Slotted Interrupters
- Transisitor and Darlington
- H22A1 Optoswitches Transistor PWB
- H22A2 Optoswitches Transistor PWB
- H22A3 Optoswitches Transistor PWB
- ISTS100 Optoswitches Transistor PWB
- ISTS105A Optoswitches Transistor PWB
Standard Devices:
Optoswitches Transistor PWB
- Reflectors
- Flying Leads
- 5mm Gap Interrupters
Special Purpose Devices
Optoswitches Transistor Flanged
- H21A1 Optoswitches Transistor Flanged
- H21A2 Optoswitches Transistor Flanged
- H21A3 Optoswitches Transistor Flanged
- ISTS200 Optoswitches Transistor Flanged
Solid State Relays (SSR)
- 1 channel type (1 a output) normally off signal pole signal throw relay
- Low operating current
- 60 to 600V output withstand voltage
- Low On resistance
- Wide operating temperature range of -40°C to 85°C
- High isolation voltage between input and output (Viso=5000 Vrms)
- IS172G 4 Pin, Form A, SMD, Solid State Relay
- ISP06 4 Pin DIP Type, Form A, Solid State Relay
- ISP25 4 Pin DIP Type, Form A, Solid State Relay
- ISP40 4 Pin DIP Type, Form A, Solid State Relay
- ISP60 4 Pin DIP Type, Form A, Solid State Relay
Features:
4 Pin Solid State Relays (SSR)
- Exchange equipment
- Measurement equipment
- FA/OA equipment
- Industrial Controls
- Security
- IS06 6 Pin DIP Type, Form A, Solid State Relay
- IS25 6 Pin DIP Type, Form A, Solid State Relay
- IS40 6 Pin DIP Type, Form A, Solid State Relay
- IS60 6 Pin DIP Type, Form A, Solid State Relay
