Newhaven Display

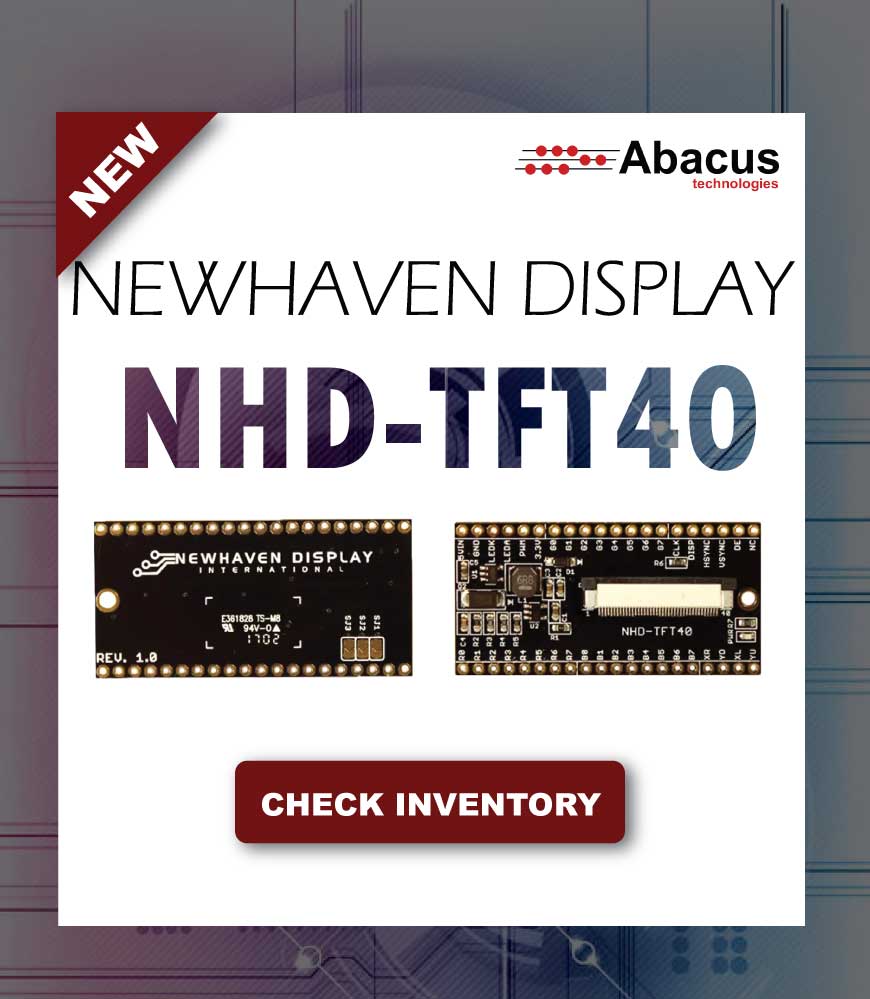

NHD-TFT40
The connection on our TFT’s is a small, Flat Flex Cable (FFC) with 40 tiny pins that are all very close to each other and can sometimes be difficult to connect to for prototyping and testing.That's where the new NHD-TFT40 comes in. This interface board has a connector meant for Newhaven's TFT's FFC cable.
- Once the cable is connected, user has easy access to all the display's signal
- Industry standard size thru-holes meanr for easy pin haeder soldering and jumper wire use
- Already designed electrical requirments of the TFT
Description
- TFT Breakout Board
- 40-pin Top-Contact FFC/FPC Connector
- Configurable LED Driver with PWM
- Breadboard Friendly
- Power LED Indicator
posted by Ameal Tesfaye
04 Aug 2017
